[EOL] 5Stack FIRE IoT Development Kit (PSRAM 2.0)

PRODUCT DETAILS

Description

M5Stack FIRE Kit, as one of the M5Stack series, is an upgrade from the Gray kits. Providing 9-Axis IMU sensor(6-Axis posture acceleration measurement 3-Axis magnetic measurement), it equips with more hardware resources : 16M Flash 8M PSRAM , enhanced Base (M5GO Base and M5GO CHG Base), larger battery, etc. For those developers who ask for hardware performance, Fire will be a good choice.

With a IMU posture sensor, there are a lot of situations which you can apply this kit to: detecting acceleration, angulation, and trajectory. You can make relative products like sports data collector, 3D remote gesture controller and more base on the above functions.

FIRE is M5 Core device. Its modular, stackable, scalable, and portable device is powered with an ESP-32 core, which makes it open source, low cost, full-function, and easy for developers to handle new product development on all stages include circuit design, PCB design, software, mold design and production.

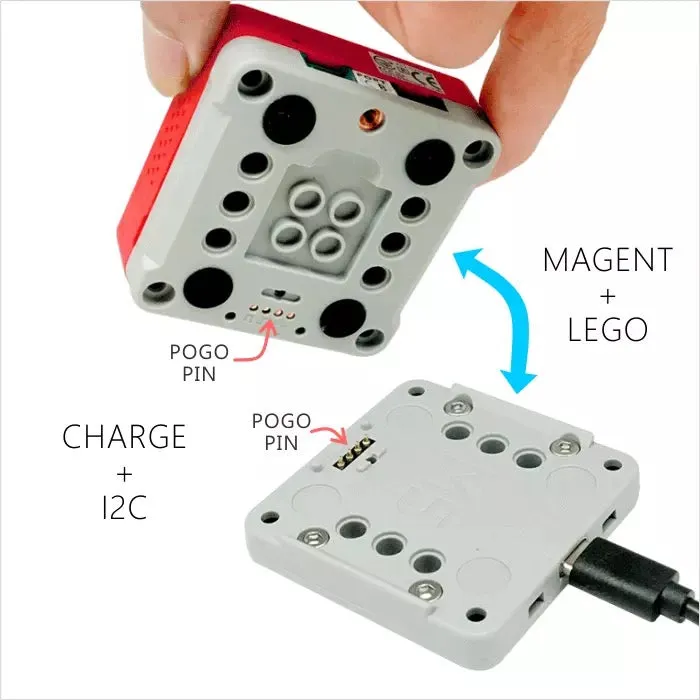

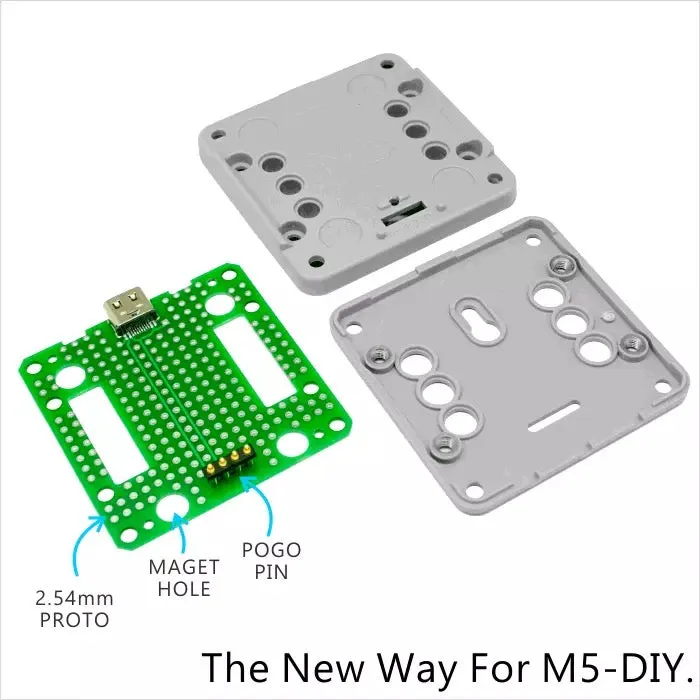

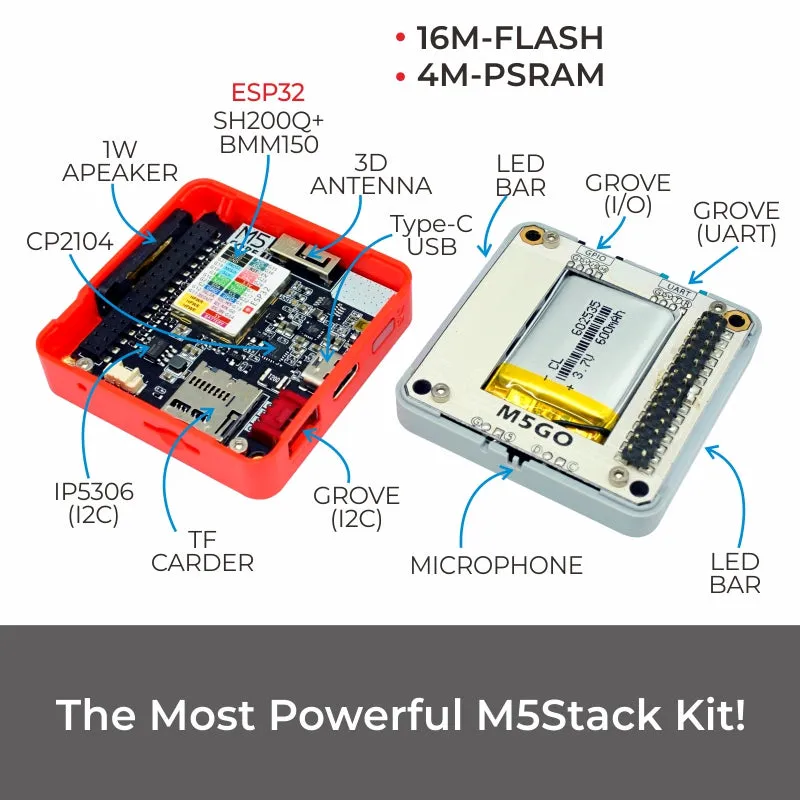

M5Stack Fire comes with three separable parts. The top part ,just like Basic and Gray Kit, has all kinds of processors, chips ,sockets, 2.4G antenna, ESP32, power management IC , a LCD screen and some other interface components. The middle part is called M5GO base which provides a lithium battery, M-BUS socket , LED bar and three more GROVE Ports. The bottom part is a charge table, which can be connected to the M5GO base via POGO pins.

Supportive development platforms and programming languages: Arduino, Blockly language with , Micropython. Regardless of what level programming skill you have, M5Stack would guide you in every step of the way to realize your idea as well as to the final productlzation.

If you ever played with ESP8266, you would realize that ESP32 is a perfect upgrade out of ESP8266. In comparison, ESP32 has more GPIOs, more analog inputs and two analog outputs, multiple extra peripherals( like a spare UART ). Official developing platform ESP-IDF has transplanted with FreeRTOS. With dual-core and real time OS you can get more organized code and much high speed processor.

Notice:
The GPIO 16 / 17 in Fire is connected to the PSRAM by default, so when you connect or stack other function modules, you need to avoid conflicts with these two pins to prevent the device from working improperly and causing instability.

Power on/off:
Power on: click the red power button on the left
Power off: Quickly double-click the red power button on the left
Note: By default, when USB is powered, it cannot be shut down

This product is EOL now.

Product Features

• ESP32-based
• Speaker, 3 Buttons, LCD(320*240)
• TF card slot (16G Maximum size)
• Battery Socket & Lithium Polymer Battery
• Extendable Pins & Holes
• M-Bus Socket & Pins
• Compatible with multi-platform development:

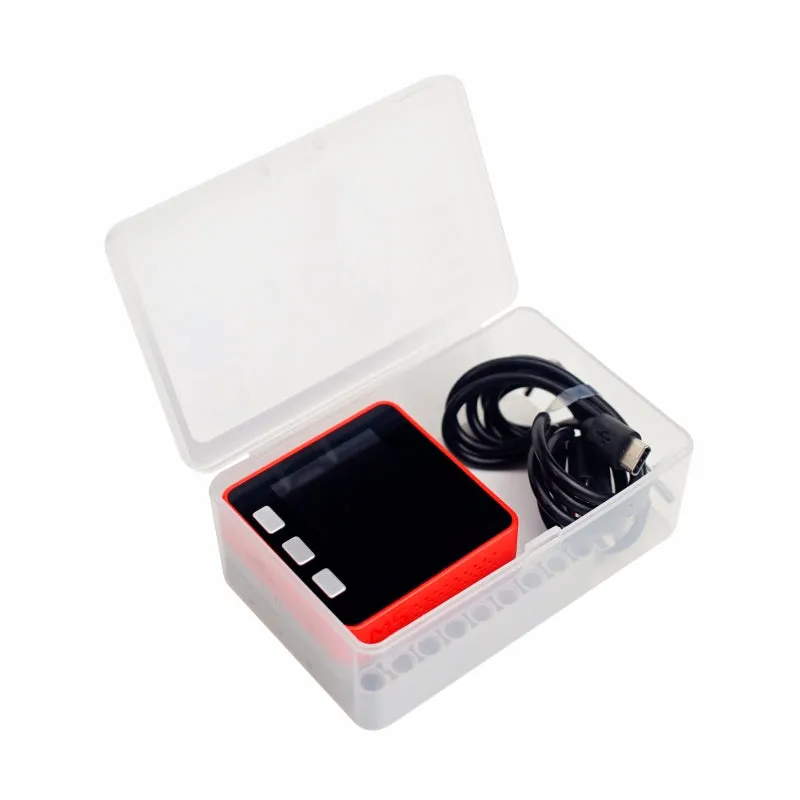

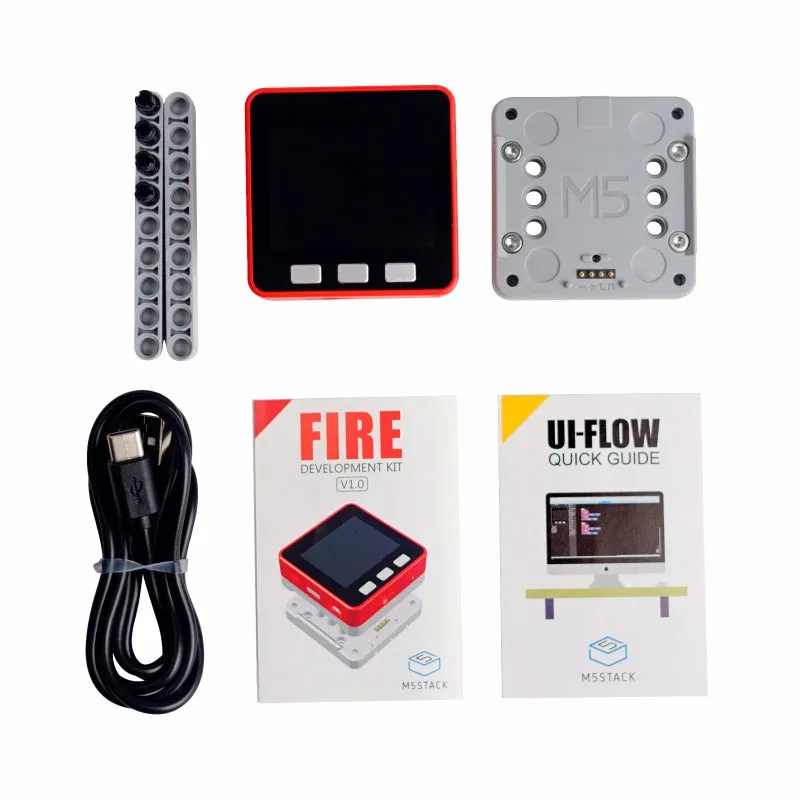

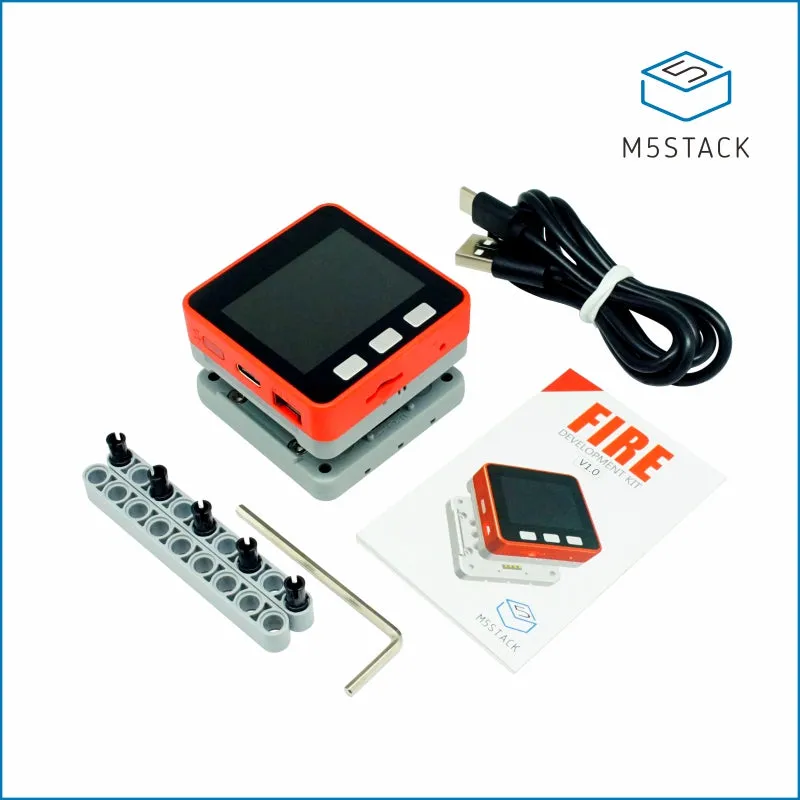

Include

• 1x FIRE
• 1x M5GO CHG Base
• 2x LEGO block
• 5x LEGO connector
• 1x M3 HEX KEY
• 1x Type-C USB(100cm)
• 1x User Manual

Applications

• Internet of things terminal controller
• Stem education product
• DIY creation

Specification
